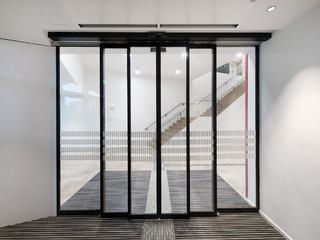

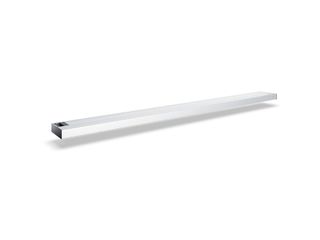

Slimdrive SLT-FR * Automatic telescopic sliding door system for escape and rescue routes for use in extremely narrow glass façades

Slimdrive SLT
  • Escape route function with redundant drive design
  • Two parallel-tracks guide the door leaves and thus achieve high opening widths
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
Show more
  • Integrated battery for emergency opening and closing in the event of a power failure
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Double and four-leaf sliding door systems in escape and rescue routes
  • In confined spaces with small clear opening width or little space next to the door opening
  • Interior and exterior doors with high access frequency
  • Opening widths of 1000 to 3600 mm possible
  • Door leaf weights up to 80 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO glass and integrated all-glass systems (IGG)

Technical data

Slimdrive SLT-FR
For 1-leaf door systems -
For 2-leaf door systems Yes
For 4-leaf door systems Yes
Height 70 mm
Depth 247 mm
Leaf weight (max.) 2-leaf 80 kg
Leaf weight (max.) 4-leaf 70 kg
Opening width 2-leaf 1000 mm - 3000 mm
Opening width 4-leaf 1600 mm - 3600 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005

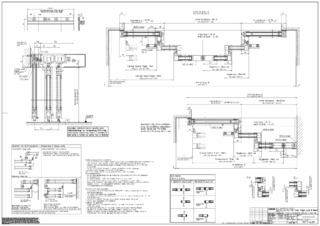

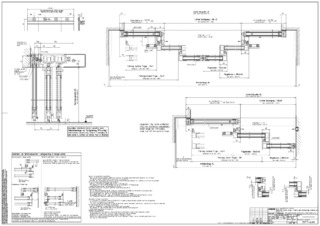

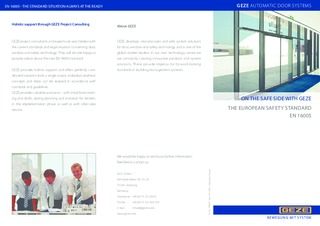

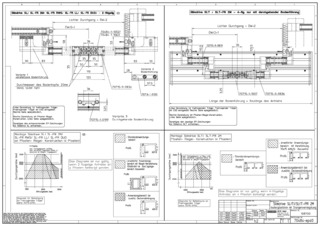

Downloads
