Push button

AS 500 * Manual trigger switch for the manual release of electrically controlled hold-open devices

  • IP rating IP40
  • Including terminating resistor for line monitoring
Contact us

Application Areas

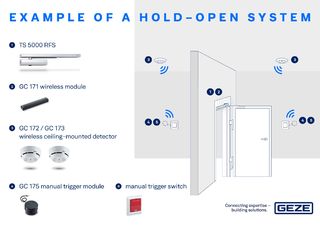

  • Hold-open systems for manual release of the hold-open device
  • Installation in the direct vicinity of the end plate

Technical data

AS 500

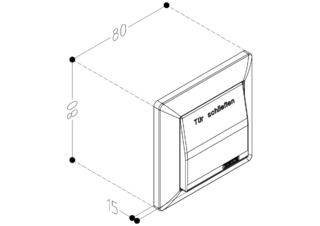

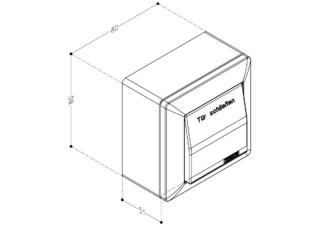

Dimensions 80 x 80 mm
Switching voltage 250 V
Switching current 10 A
IP rating IP20
Type of installation Surface-mounted, Flush-mounted installation

Variants & Accessories
