Sensor switch

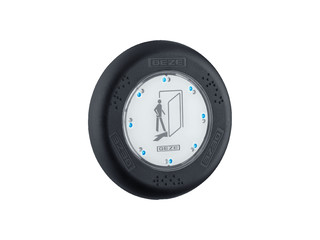

LED sensor switch * Switch for activating automatic doors

LED sensor switch glass LED sensor switch glass
  • Touch-sensitive capacitive push button with blue/red LED illumination
  • High-quality and hygienic activation with visual feedback of the activation command
  • Also available with Braille tactile lettering
  • Available with glass or plastic border
  • IP rating IP69
  • Long service life - more than 100 million hystereses
Contact us

Application Areas

  • For activation of all GEZE automatic doors
  • Flush-mounted installation

Technical data

LED sensor switch
Dimensions 100 x 100 x 10 mm
Current consumption 35 mA
Output PNP transistor output
IP rating IP69
Type of installation Flush-mounted installation
Connection type Cable prepared for connection to screw terminal
Connector cable length 200 mm
Service temperature -30 - 80 °C
