E 350 N * Spindle drive in 230 V version with extensive console program
- Compact design
- Versatile thanks to extensive console range
- Robust design with mechanical load cut-off and IP rating IP65
Spindle drive in 230 V version with extensive console program
Application Areas
- Direct opener for natural ventilation (230 V) in the façade and roof area
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Installation on wooden, PVC or metal windows

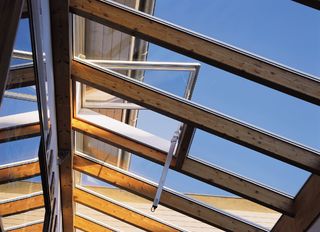

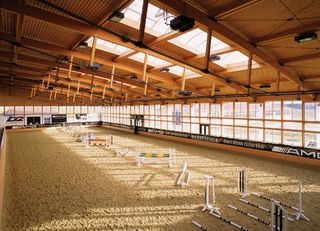

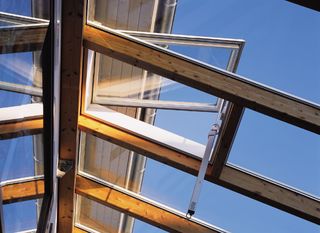

Installation situations in reference objects and videos

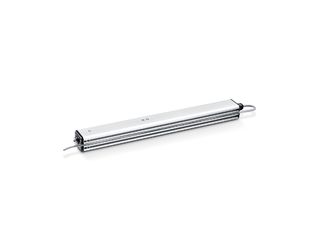

E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consoles Inward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves. Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consoles Inward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves. Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consoles Inward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves. Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consoles Inward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves. Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
Technical data
| E 350 N | |
| Available stroke length | 100 mm, 150 mm, 200 mm, 230 mm, 300 mm, 500 mm, 700 mm, 750 mm, 1000 mm |
| Opening speed ventilation | 5 mm/s |
| Force of pressure (max.) | 750 N |
| Holding force (max.) | 2000 N |
| Compressive force | 750 N |
| Voltage at operation | 230 V ± 10 % |
| Operating voltage | 230 V |
| Current consumption | 0.15 A |
| Power consumption | 35 W |
| Duty rating | 50 % |
| Connection cable length | 2.5 m |
| min. core dimension | 0.75 mm² |
| Number of cables | 3 cores |
| Temperature range | -20°C...+70°C |
| IP rating | IP65 |
| protection rating | II |
| Type of stroke shortening | Factory setting |
| End position cut-off extended | mechanical overload cut-off |
| End position cut-off retracted | mechanical overload cut-off |
| Overload cut-off | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening leaf installation | Yes |
| Top-hung window OUTWARD-opening frame installation | Yes |
| OUTWARD-opening roof window | Yes |

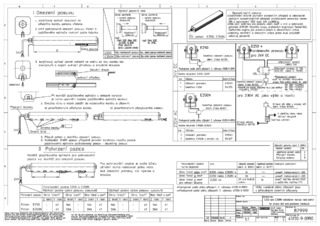

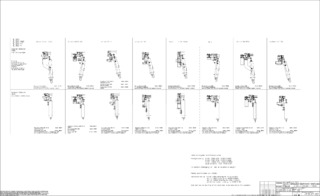

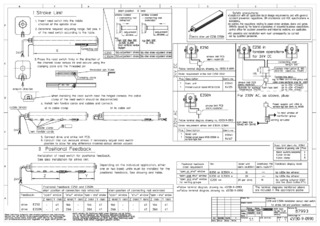

Downloads
