E 1500 S * Spindle drive with high opening and closing speed
- High pressure force and high speed
- Max. opening width of 1000 mm achieved in less than 60 seconds
- Robust and corrosion-resistant design with built-in end position damping
- Syncro drive sets are available for leaf widths over 1200 mm
- Aluminium housing for highest design demands
- Extensive consoles allow versatile installation on main or secondary closing edges
- Synchro set without external control device
- Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Spindle drive with high opening and closing speed
Application Areas
- Heavy windows in the roof area
- Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)
- Use in the exhaust air system
- Installation on wooden, PVC or metal windows

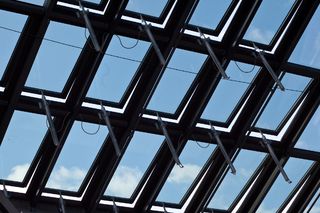

Installation situations in reference objects and videos

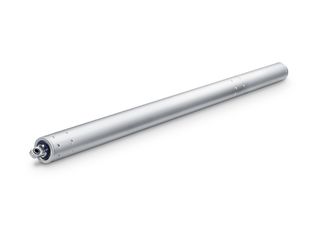

Spindle drive E 1500 S
Spindle drive with high opening and closing speed © Nikolaus Grünwald / GEZE GmbH

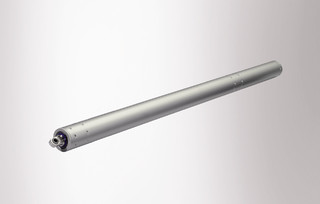

Spindle drive E 1500 S
Spindle drive with high opening and closing speed, installed at the Rhine shopping centre Weil © Michael Eckmann / GEZE GmbH
Technical data
| E 1500 S | |
| Available stroke length | 500 mm, 750 mm, 1000 mm |
| Opening speed RWA | 16 mm/s |
| Opening speed ventilation | 16 mm/s |
| Closing speed (max.) | 16 mm/s |
| Force of pressure (max.) | 1500 N |
| Holding force (max.) | 25000 N |
| Compressive force | 1500 N |
| Tensile force | 1500 N |
| Voltage at operation | 24 V ± 25 % |
| Operating voltage | 24 V DC |
| Current consumption | 4 A |
| Power consumption | 72 W |
| Residual ripple (max.) | 20 % |
| Duty rating | 30 % |
| Connection cable length | 3 m |
| Special length of power supply cable | 5 m, 10 m |
| min. core dimension | 1 mm² |
| Number of cables | 3 cores |
| Temperature range | -5°C...+75°C |
| IP rating | IP54 |
| protection rating | III |
| Syncro function | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Factory setting |
| End position cut-off extended | electronic |
| End position cut-off retracted | electronic |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, up to 1000 mm stroke |
| SHEV tested | Yes |
| SHEV additional information | yes, up to 1000 mm stroke |
| Number synchronisation drive units | 4 |
| OUTWARD-opening roof window | Yes |
