Scissors OL 90 N

Standard leaf bracket for OL 90 N / OL 95 * Standard leaf bracket suitable for OL 90 N / OL 95 scissors on wooden windows with Euro groove and for use on semi-circular arch and segmental arch windows.

Default leaf bracket for wooden windows
Contact us

Standard leaf bracket for OL 90 N / OL 95

Application Areas

  • For rectangular windows
  • Installation on wooden windows with Euro groove
  • Leaf installation

Downloads

Block diagram OL 90 N (.dwg | 1 MB)
Block diagram OL 90 N (.pdf | 557 KB) Installation drawing DE EN (785027)
Installation plan OL 90 N / OL 95 with E 212 and additional locking (.dwg | 245 KB)

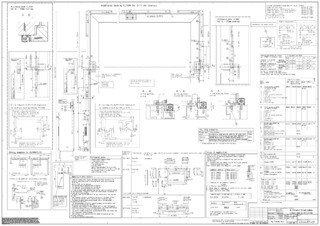

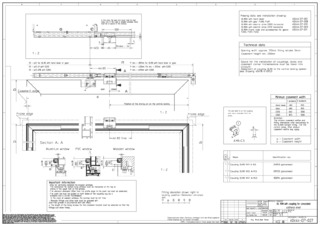

Installation plan OL 90 N / OL 95 with E 212 and additional locking (.pdf | 474 KB) Installation drawing EN (1609877)
Installation plan OL 90 N / OL 95 with E 212 and additional locking (.dxf | 2 MB)
Installation plan OL 90 N with additional locking (.dxf | 2 MB)
Installation plan OL 90 N with additional locking (.dwg | 468 KB)
Installation plan OL 90 N with coupling (.pdf | 191 KB) Installation drawing EN (1609884)
Installation plan OL 90 N with coupling (.dxf | 1 MB)
Installation plan OL 90 N with coupling (.dwg | 147 KB)

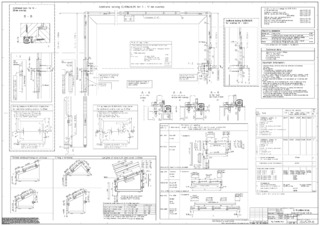

Installation plan OL 95 with additional locking (.pdf | 393 KB) Installation drawing EN (1609965)
Installation plan OL 95 with additional locking (.dxf | 1 MB)
Installation plan OL 95 with additional locking (.dwg | 219 KB)

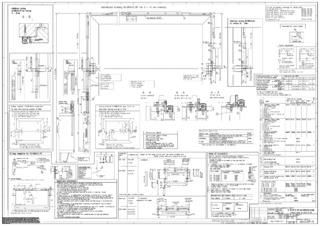

Installation plan OL 95 with E 212 and additional locking (.pdf | 482 KB) Installation drawing EN (1609972)
Installation plan OL 95 with E 212 and additional locking (.dxf | 2 MB)
Installation plan OL 95 with E 212 and additional locking (.dwg | 475 KB)

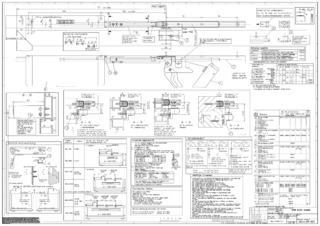

OL 90 N with E 212 horizontal (.pdf | 452 KB) Installation drawing DE EN (1597326)
OL 95 for pitched window with vertical gear Fz 91 or gear Fz 92 (.dxf | 2 MB)
OL 95 for pitched window with vertical gear Fz 91 or gear Fz 92 (.dwg | 513 KB)

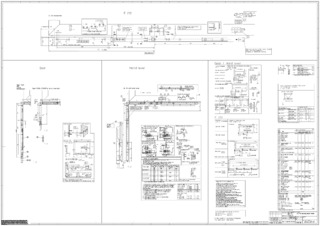

OL 95 for top hung inward opening (.pdf | 592 KB) Installation drawing EN (1708687)
OL 95 surface-mounted fanlight opener (.dwg | 581 KB)
OL 95 with E 212 horizontal (.dwg | 450 KB)
OL 95 with E 212 horizontal (.dxf | 1 MB)

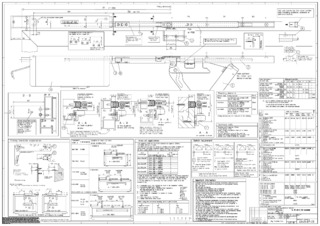

OL 95 with E 212 horizontal (.pdf | 480 KB) Installation drawing EN (1609944)
OL 95 with E 212 vertical (.dxf | 2 MB)

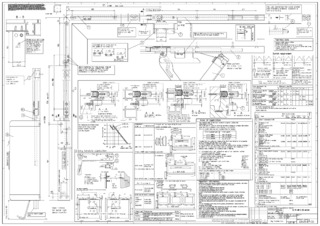

OL 95 with E 212 vertical (.pdf | 515 KB) Installation drawing EN (1609951)
OL 95 with E 212 vertical (.dwg | 489 KB)
OL 95 with hand lever (.dwg | 481 KB)

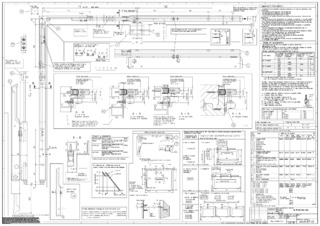

OL 95 with hand lever (.pdf | 475 KB) Installation drawing EN (1609888)
OL 95 with hand lever (.dxf | 2 MB)
Default leaf bracket for wooden windows
