TS 3000 EC

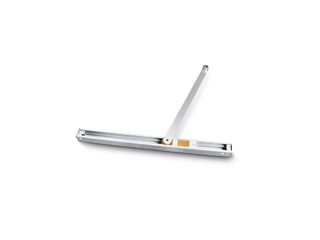

T-Stop guide rail TS 3000/ 5000 * With opening restrictor and lever

T-Stop guide rail BG
  • Easy to replace with the standard guide rail
  • Saves time as no floor mounted door stopper needs to be installed
  • With screwed slide block
  • Pivot bearing T-Stop
Contact us

Application Areas

  • Single leaf doors
  • Installation on hinge side
  • Right and left single-action doors
  • For opening restriction without door stopper

Technical data

T-Stop guide rail TS 3000/ 5000
Length 452.5 mm
Width 33 mm
Height 30 mm
Opening restrictor integrated Yes
Hold-open function Optional

Variants & Accessories
