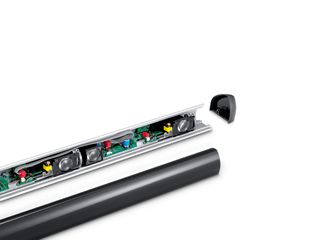

GC 335 * Sensor strip with high safety standard for protecting automatic swing and revolving doors
- Sensor strip with high safety standard to protect main and secondary closing edges
- Detection area secures leaf widths of up to max. 1400 mm
- Inclination angle and scanning range can be adjusted mechanically
Application Areas
- Protection of automatic swing and revolving doors
- Interior and exterior doors
- Doors along escape and rescue routes
- Normal flooring
Installation situations in reference objects and videos

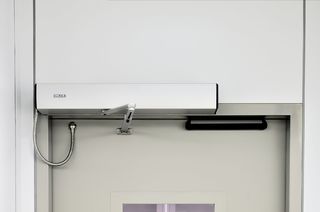

Swing door at Children's Memorial Health Institute
Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska
Swing door at Children's Memorial Health Institute
Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska
Operating room at Children's memorial health institute
Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska
Technical data
| GC 335 | |
| Dimensions | 42 x 37 mm |
| Technology | Active infrared beams |
| Switching voltage | 30 V |
| Switching current | 30 mA |
| Operating current | 60 mA |
| IP rating | IP52 |
| Connection type | Plug-in screw terminal |
| Connector cable length | 1000 mm |
| Installation height (min.) | 1500 mm |
| Installation height (max.) | 2500 mm |
| Reaction time | < 70 ms |
| Service temperature | -10 - 50 °C |
| Humidity | < 90% relative, non-condensing |
| Standard conformity | DIN 18650, EN 16005 |
Downloads
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
