Combined detector

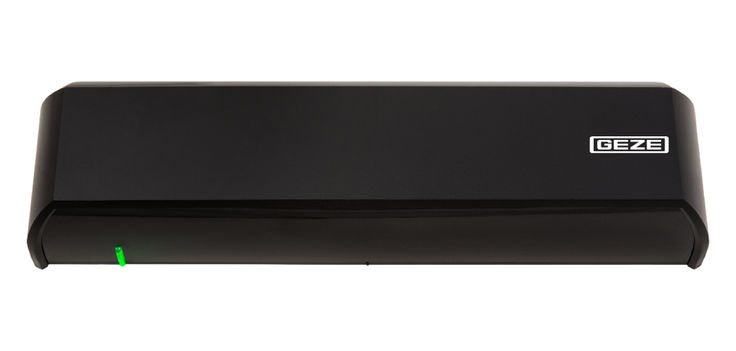

OA-FLEX T * Combined detector for the activation and safeguarding of automatic sliding doors
- Non-contact, convenient door opening when approaching
- Combines activation and safety functions in one sensor
- Six-row active infrared detection area for precise threshold protection
- BLUEZONE review function for additional security in the threshold area
The OA-FLEX T is a combined detector that is approved for use on linear sliding doors. It combines activation and threshold protection in one product. Its six-row active IR detection area and BLUEZONE review function detect people accurately. This reduces the risk of accidents and incorrect opening, thereby improving comfort, security and energy efficiency.
Application Areas
- Automatic linear sliding doors in accordance with EN 16005
Technical data
| OA-FLEX T | |
| Dimensions | 245 x 68 x 37 mm |
| Technology | Active infrared beams |
| Supply voltage | 24 V AC |
| Installation height (min.) | 2 m |
| Installation height (max.) | 2.5 m |
| Material | Plastic |
| Weight | 220 g |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Standard conformity | EN 16005 |
