Combined detector
VIO-D * Combined detector for the activation and safeguarding of automatic sliding doors
- Non-contact, convenient door opening when approaching
- Combines activation and safety functions in one sensor
- Radar and active infrared technology
- Variant DT1 with direction detection, DT2 without direction detection
The VIO-D combines a motion sensor with radar technology for opening doors with a double monitorable active infrared curtain to protect users in accordance with the EN 16005 standard. Door opening and closing is controlled by a direction-sensitive radar movement detector, and two fail-safe infrared curtains, each equipped with 24 spotlights, ensure safe use.
Application Areas
- Automatic linear sliding doors in accordance with EN 16005
Technical data
| VIO-D | |
| Dimensions | 269 x 48.5 x 48.5 mm |
| Installation height (min.) | 1.8 m |
| Installation height (max.) | 3 m |
| Material | Plastic |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Humidity | Relative humidity, non-condensing |
| Approvals | EN 12978, EN 16005 |
Downloads

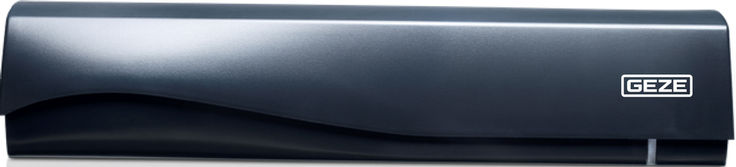

!VIO-D!
LABELLING OBLIGATION:
© GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
