Opening drives

EOL N * Chain drive with universal brackets for easy automation in ventilation mode

Chain drive EOL N 230 V, grey
  • Cost-effective and powerful chain drive for 230 V ventilation applications
  • Fast and simple installation
Contact us

EOL N

Application Areas

  • Natural ventilation (230 V) also designed for private homes
  • Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Technical data

EOL N
Dimensions 337 x 49 x 80 mm
Closing speed (max.) 37 mm/s
Compressive force 300 N
Tensile force 300 N
Operating voltage 230 V
Current consumption 0.26 A
Power consumption 60 W
Duty rating 40 %
Service temperature -5 - 50 °C
IP rating IP30
protection rating II
Syncro function No

Downloads

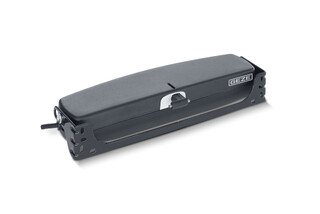

Chain drive EOL N 230 V, black Product shot (2557792)
LABELLING OBLIGATION:  © GEZE GmbH

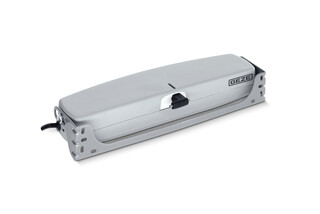

Chain drive EOL N 230 V, grey Product shot (2557791)
LABELLING OBLIGATION:  © GEZE GmbH
EOL N * Product data sheet EN

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
