Locks and strike boxes

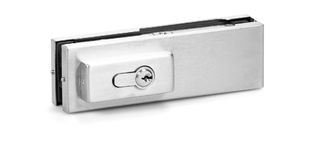

PL 50 RD * Glass Fitting corner patch lock with round bolt

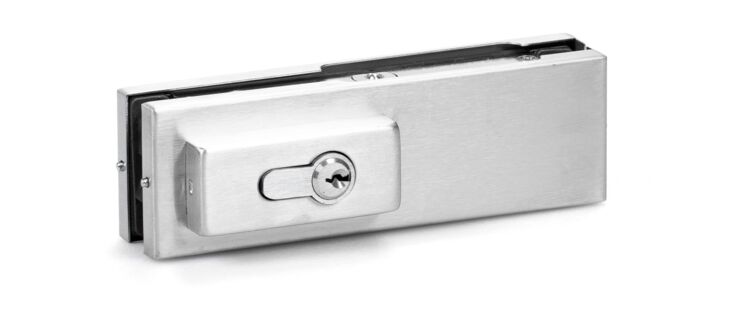

GEZE Glass Fitting PL 50 RD Floor lock with round bolt
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For full-glass doors
  • For glass thicknesses 10 and 12 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors

Technical data

PL 50 RD
Dimensions 163 x 32 x 51 mm
Width 32 mm
Length 163 mm
Height 51 mm
Glass thickness (min.) 10 mm
Glass thickness (max.) 12 mm
Type of installation Glass installation

Variants & Accessories
