Building automation systems

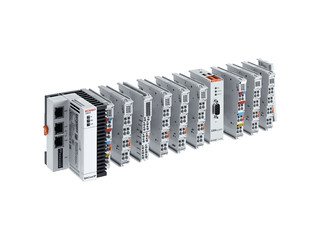

myGEZE Control maximum system expansion Controller system as maximum system expansion with GEZE CAN bus, I/O technology and KNX to connect all GEZE products and third-party products.

System consists of: basic device, 10x 8-channel digital input terminals, 24 V DC potential distribution terminals, power supply terminals, 10x 2-channel relay output terminals, 10x 4-channel relay output terminals, 5x CAN master terminals + CAN connectors, E-Bus coupler, 2x KNX/EIB terminals, bus end terminal
System is also available without CAN master terminals and digital input and output terminals
Maximum system expansion for one control unit, which allows for the connection of up to 200 product systems from the entire product portfolio
Comprehensive, project-specific configuration according to user specifications possible (system designation, comment texts, status texts)
Time functions and grouped switching commands configurable via scene applications
BACnet alarm concept integrated, can be adjusted to customer-specific requirements

BACnet Building Controller to connect up to a max. of 200 product systems via 5 CAN-BUS lines, 80 digital input signals (24 V DC), 40 digital output signals (relays), GEZE KNX system

Application Areas

BACnet IP integration in building management systems
Networking of GEZE products that can be connected with CAN bus technology
Networking of non BUS capable components via digital input and output terminals
Networking of KNX capable GEZE window drives in the building management system
Products suitable for emergency exit systems: TZ 320, TZ 321 and TZ 322
Products suitable for automatic door drives: Slimdrive, Powerturn, TSA 325 NT and Revo.PRIME
Products suitable for smoke and heat extraction systems: MBZ 300 in different versions
Products suitable for window systems: Slimchain, Powerchain, F 1200+ and locking systems
For products with I/O technology like GEZE hold-open systems and third-party products

Go to campaign page

Installation situations in reference objects and videos

myGEZE Control

myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
