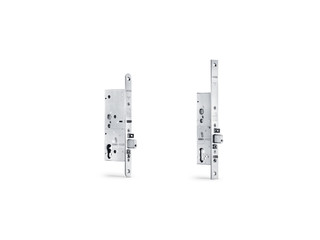

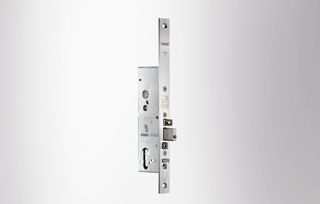

IQ lock M DL * Mechanical panic lock for simple panic functions on double leaf doors
- Mechanical self-locking ensures automatic crossbar projection every time the door is closed
- Unlocking of active leaf by activating passive leaf (full panic function)
- Divided cross latch prevents the bolt from locking even under side-load
- Small rear backset and small dimensions of the lock case
- Can be combined with electronic thumbturn cylinders
Application Areas
- Double leaf emergency exit and panic doors (left hand and right hand door)
- Doors along escape and rescue routes
- Fire and smoke protection doors
Technical data
| IQ lock M DL | |
| DIN direction | left / right |
| Service temperature | -10 - 50 °C |
| Panic function / mechanical self-locking | Yes |
| Divided cross latch (3 mm gap between latch and bolt) | Yes |
| Current consumption | N/A, N/A |
| Resistant to forcing | 10000 N |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
