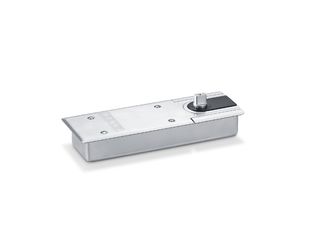

TS 500 NV
TS 500 NV with hold-open unit * Floor spring for single leaf single-action/double-action doors up to 1100 mm leaf width with optional hold-open device
- Closing force EN1-4 with variable adjustment
- Can be used for right and left hand doors without conversion
- Mechanical hold-open unit in the door closer with hold-open area 85°/90°/105°/120°
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
Application Areas
- Right and left single- and double-action doors
- Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
- Floor mounting, concealed
Technical data
| TS 500 NV with hold-open unit | |
| Use on single-/double-action door | Single-action door, Double-action door |
| Type of installation | Floor |
| Opening angle (max.) | 170 ° |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Leaf width (max.) | 1100 mm |
| Leaf weight (max.) | 150 kg |
| DIN direction | left / right |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Position of closing force adjustment | Top |
Downloads
TS 550 NV
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
