TS 3000 EN3

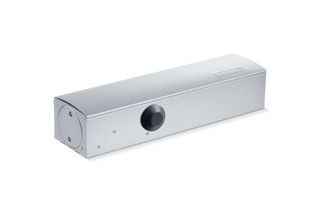

Closer body TS 3000 EN3 * Main body for overhead door closer with guide rail EN3

GEZE TS 3000 V closer Slide rail door closer for single-leaf doors
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
  • Door closer, can be used for leaf and transom installation
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Main body for overhead door closer with guide rail EN3

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 950 mm leaf width
  • Door leaf and transom installation on the hinge and opposite hinge side

Technical data

Closer body TS 3000 EN3
Closing force in accordance with EN 1154 EN 3
Leaf width (max.) 950 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side, Transom installation hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 226 mm
Width 46 mm
Height 60 mm
Closing force adjustable No
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Safety valve againts overload Yes
Thermo-control valves Yes
