GC Lock Control SHEV

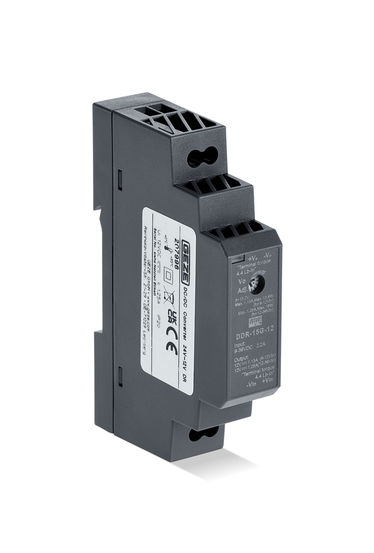

DC converter * DC-to-DC converter from 24 V to 12 V, for the use of 12 V motor locks on the SHEV air inlet door
- Connection of 12 V motor lock controls or motor locks with integrated control unit
- Converts the 24 V input current to 12 V at the output
The DC-DC converter converts the 24 V input voltage from the SHEV control panel to a low output voltage in the case of fire. This allows for the use of 12 V motor locks on a SHEV air inlet door
Application Areas
- Can be used in combination with the GC Lock Control SHEV
- Top hat rail mounting
Technical data
| DC converter | |
| Type of installation | Top hat rail mounting |
| Cable dimensions (max.) | 2.5 mm² |
| Output current (max.) | 1.25 A |
| Service temperature | -40 - 85 °C |
| IP rating | IP20 |
| protection rating | III |
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
