Locking elements

FTÖ 331 * Emergency exit electric strike 331 for safe opening of the door in the event of danger

FTÖ 331

Product overview
Technical data
Downloads
Variants & Accessories

Application Areas

Emergency exits
Emergency exits

Technical data

	FTÖ 331
Width	39 mm
Height	134 mm
Depth	23 mm
Type of installation	in the door frame
Service temperature	-15 - 40 °C

Downloads

Product shot

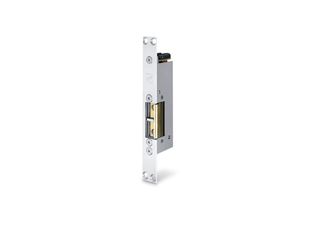

FTÖ 331, emergency exit electric strike

LABELLING OBLIGATION: © GEZE GmbH

Tender texts

GEZE Service automatic for emergency exit systems

Download (.DOC | 38 KB)

GEZE Service emergency exit systems

Download (.DOC | 36 KB)

Variants & Accessories

Variants

Show differences only

Ident-No.	Designation	Description	Dimensions	DIN direction	Type of installation	Fail-secure	Material	Approval for smoke protection doors
027100	FTÖ 331 emergency exit electric strike	With short strike plate, Dimensions: 200 x 25 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	left	in the door frame	0	Precision cast steel	0
069605	FTÖ 331 emergency exit electric strike	With angled strike plate, Dimensions: 220 x 30 x 48 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	right	in the door frame	0	Precision cast steel	0
104001	FTÖ 331 emergency exit electric strike	Fafix version with short strike plate Dimensions: 200 x 25 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	right	in the door frame	0	Precision cast steel	0
089346	FTÖ 331 emergency exit electric strike	Incl. strike plate with lock latch guide, dimensions: 200 x 35 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	left	in the door frame	0	Precision cast steel	0
069604	FTÖ 331 emergency exit electric strike	With angled strike plate, Dimensions: 220 x 30 x 48 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	left	in the door frame	0	Precision cast steel	0
103999	FTÖ 331 emergency exit electric strike	Fafix version with short strike plate Dimensions: 200 x 25 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	left	in the door frame	0	Precision cast steel	0
089347	FTÖ 331 emergency exit electric strike	Incl. strike plate with lock latch guide, dimensions: 200 x 35 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	right	in the door frame	0	Precision cast steel	0
027101	FTÖ 331 emergency exit electric strike	With short strike plate, Dimensions: 200 x 25 x 3 mm / Design: fail-safe Operating voltage: 24 V DC Current consumption 160 mA Retention force 5000 N Side-load: approx. 5000 N	39 x 134 x 23 mm	right	in the door frame	0	Precision cast steel	0

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
